Built-in QUAD SM/MM OTDR Power Meter Laser Source VLF iOLM

$3,334.85 Product Price

Technical Specifications:

Maximum dynamic range See the “Technical specifications for each standard module of OTDR” for more information.
Ranging accuracy ±(0.75 + sample interval + 0.0025% × range)(excluding the refractivity placement error) (m)
Ranging resolution 0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16 and 32m
Test range 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256 and 512km (mono-mode);

0.4, 0.8, 1.6, 3.2, 6.4, 16 and 32km (850nm multi-mode)
Testing PW 3, 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240 and 20480ns

3, 5, 10, 30, 80, 160, 320, 640 and 1280ns(850nm multi-mode)
Maximum number of sampling points 256k
Linearity 0.03dB/dB
Loss resolution 0.001dB
Refractivity setting range 1.00000 ~ 1.99999(step: 0.00001)
Range unit km, m, thousand feet, feet
Display 800×480, 7-inch TFT color LCD (a capacitive touch screen in the  standard configuration, and a resistive touch screen optional)
Optical output interface FC/UPC (standard configuration, with LC/UPC, SC/UPC and ST/UPC optional)
Interface language

Simplified Chinese, English, Russian and Korean available (contact the office for other language support)
External interfaces USB, Micro-USB, 10M/100M Ethernet, earphone and Micro SD
Power supply AC/DC adapter: AC100V~240V, 50/60Hz and 1.5A; DC: 17V±3V(2A)

Internal Li battery: 11.1V, 6800mAh, battery operating time: 8h
Power consumption 10W
Dimensions 252mm(W)×180mm (H)×55mm (D)
Weight About 1.8kg
Environmental adaptability Operating temperature: -10℃~+50℃ (battery charging: 5℃~40℃)

Storage temperature: -40℃~+70℃ (battery: -20℃~60℃)

RH: 5% ~95%, no condensation
VFL (optional)

Operating wavelength: 650nm±20nm

Output power: 2mW (typical)

Operating mode: CW, 1Hz and 2Hz



 Optical power meter (optional)

Wavelength range: 1200nm~1650nm

Power range: -60dBm~0dBm

Uncertainty: ±5%(-25dBm, CW)



 Stable light source (optional)

Operating wavelength: the same as OTDR

Output power: ≥-5dBm

Operating mode: CW, 270Hz, 1kHz and 2kHz





SKU: TPG1800 Category:

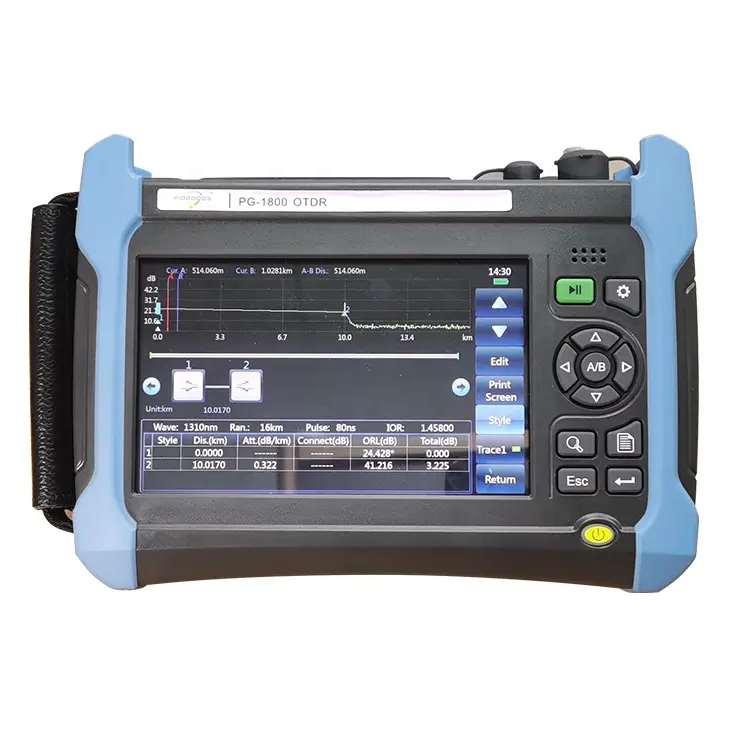

This Built-In OTDR can used to test wavelengths 850-1310nm, 1550nm, 1490nm, 1625nm and 1650nm. With the maximum dynamic range of up to 50dB, the device can be used for remote multi-branch communication network test. It’s designed with a minimum event dead zone of 0.5m which makes the near connection easy to be supervised, and the lowest sampling resolution of 2.5cm which enables it to locate the event point accurately. Additionally, the device is also designed with multiple convenient functional options, such as stable light source, optical power meter, visible red light source and fiber end face inspection tester.

This OTDR is designed with an operating temperature and a storage temperature of -10℃~50℃ and -40℃~70℃ respectively to meet both EMC requirements as well as vibration and shock test requirements, a MTBF(θ0) of 6000h or above to ensure a high reliability, and a 75W built-in Li battery to ensure an endurance for continuous measurement in the wild field.
