Master-bit Optical Talk Set Phone / Inter-phone 80km distance

$1,678.55 Product Price

Specifications:

Model TPGOTS700
Wavelength(nm) 1310/1550
Emitter Type FP-LD
Transmission Distance ≥80km
Dynamic Range 40dB
Output Power -5~-7dBm(9/125um), CW or 2KHz, 1KHz, 270Hz Modulation
Output Stability ±0.1dB/±0.25dB(1/8hrs) CW
Power Supply Rechargeable Battery + Power Supply Adaptor
Battery Operating Time 5 hours
Optical Connector FC/PC
Operating Temperature(℃) -10 ~ +60
Storage Temperature(℃) -25 ~ +70
Dimension(mm) 215X115X55
Weight(g) 520



SKU: TPGOTS700 Category:

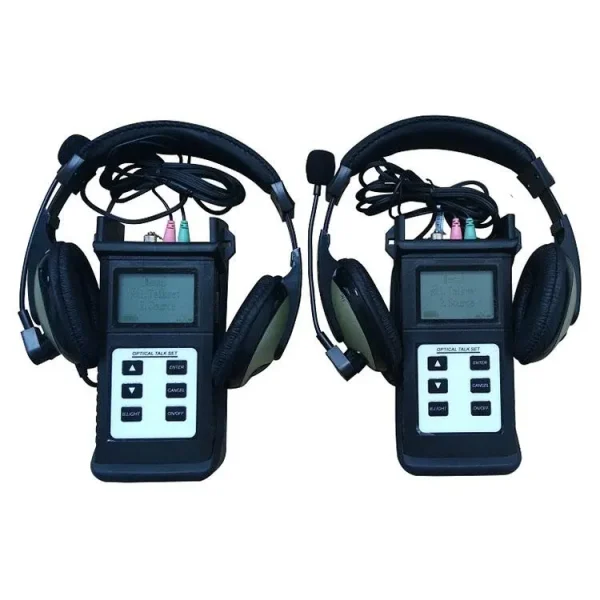

TPGOTS700 is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The TPGOTS700 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.

Features:

Full-duplex digital communication with high quality conversation connection and low background noise

Together with Optical Clip-on Coupler, enables on line communications available

Combining functions of both a digital optical phone call and a stabilized light source.

Large LCD display with backlight

Low battery power indication



Applications:

Maintenance in Telecom

Maintenance CATV

Fiber Optic Lab Testing

Other Fiber Optic Measurements
