Expert OTDR mode:Professional measurement, curve/list/map are displayed simultaneously
Optic power meter supports CW/270/330/lk/2kHz frequency identification
LS supports CW/ modulation mode output with adjustable output power
Auto OTDR, expert OTDR, event map, optic power meter ,Laser source,
VFL, RJ45 cable tracker, RJ45 cable sequence, RJ45 cable length, end face detection, flashlight optical loss test
Auto OTDR: no complex settings, one touch test
VFL and Laser source can run in the background, multi task can be operated simultaneously
RJ45 cable tracker of digital radar, stronger anti-jamming ability ,One click screen capture, easy to save the interface
RJ45 cable sequence/ cable length test, up to 300m
Test Equipments

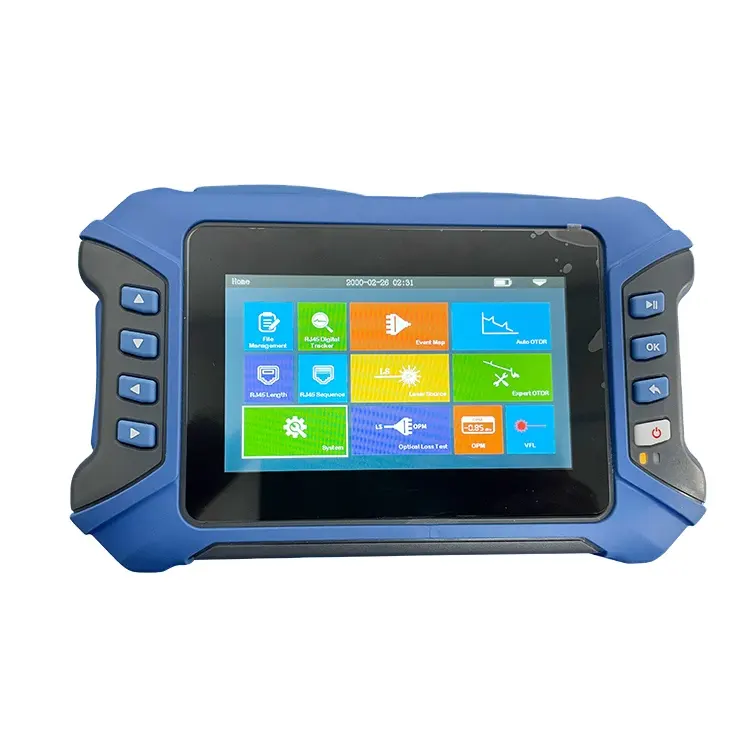

Tera Smart Spectrum OTDR iolm Touch Screen 1310/1550nm 26 24 dB
$828.95 Product Price
|
Model
|
TPG1600 OTDR
|
|
Wavelength
|
1310nm/1550nm
|
|
Dynamic Range
|
26dB/24dB
|
|
Event Blind Zone
|
2.5m
|
|
ATT Blind Zone
|
8m
|
|
Test Range
|
500m/lkm/2km/4km/8km/16km/32km/64km
|
|
Others Specification
|
|
|
Display
|
4.3 inches800X480 IPS TFT-LCD,Multi touch capacitive touch screen
|
|
Power Supply
|
AC/DCadapter:input:100V~240V,50/60Hz,0.6A output:5V>2A, Lithium battery:3.7V> 4000mAh
|
|
Battery Working
|
Continuous test>12 h
|
|
Data Storage
|
Internal storage:8GB, ≥ 20 thousand curves
|
|
Data Interface
|
USB Type C
|
|
WorkingTemperature
|
-10°C ~+50°C
|
|
Storage Temperature
|
-40°C ~+70°C
|
|
Relative Humidity
|
0~95% Non Condensing
|
|
Weight
|
<0.5kg (Battery included)
|
|
Size
|
173mm x 109mmx45mm
|
|

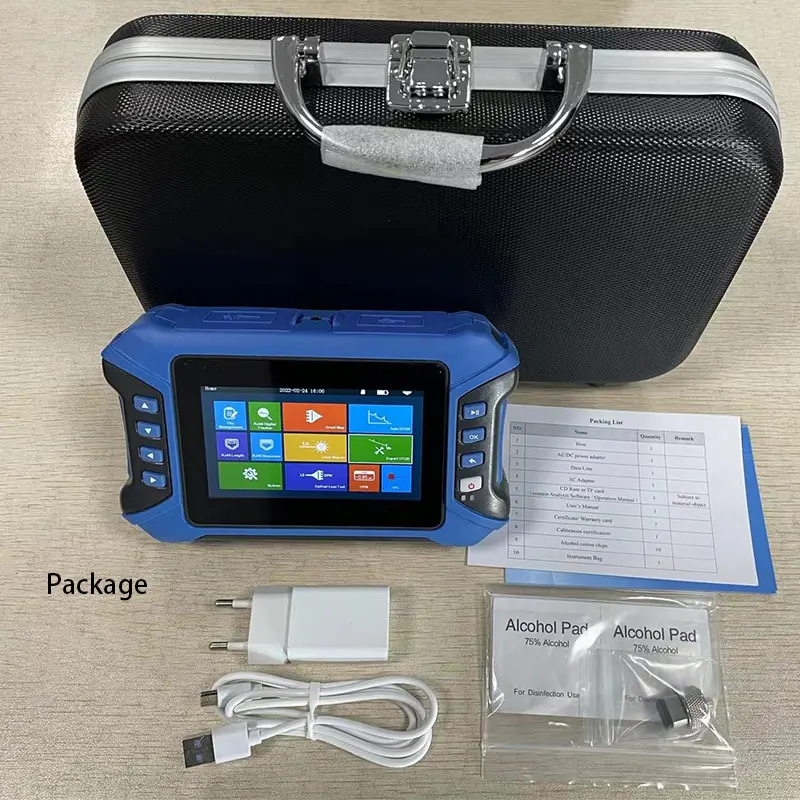

Standard configuration:Auto OTDR, expert OTDR, eve nt map, OPM, LS, VFL, RJ45 cable tracker (lncluding line finder), RJ45 cable sequenee, RJ45 cable length, end face detection( Optional), flashlight, optical loss test.
|
|
|
Configuration List
|
|
|
can test fiber with 1490/1550nm signal (power <-5dBm)
can test fiber with 1310/1490nm sign al (power <-5dBm)
|
|
